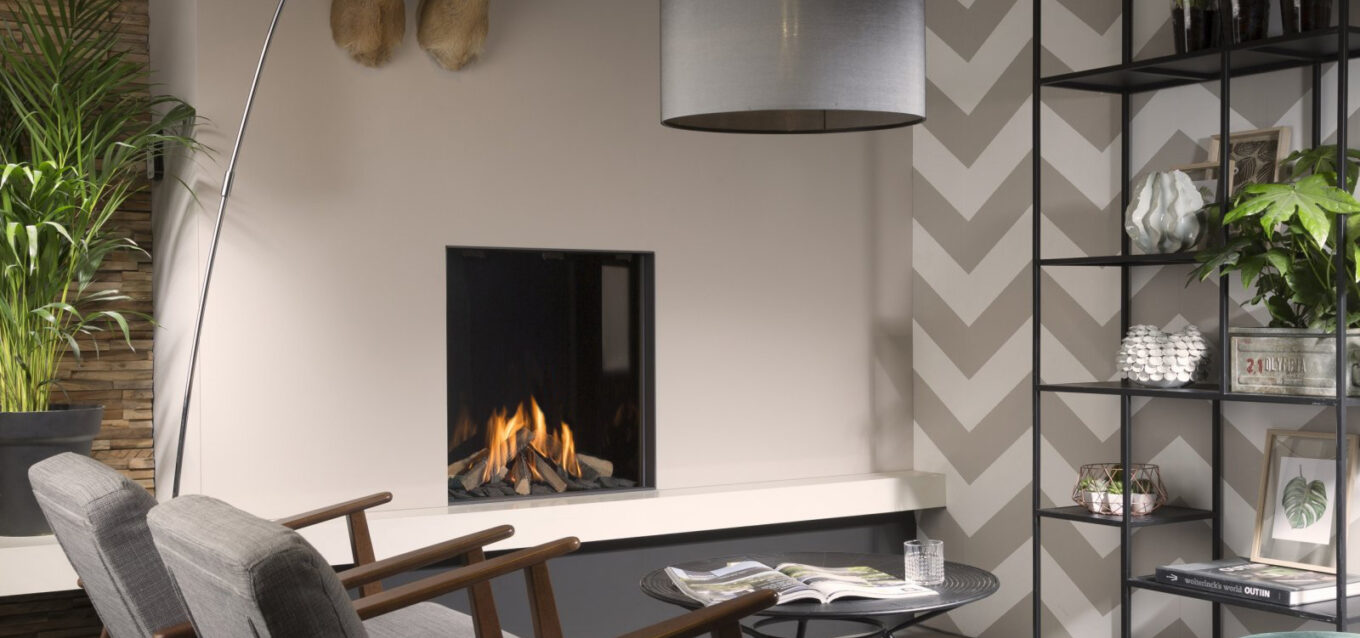

The Cupido series is the answer for those who want the most innovative flame look but are tight on space. At 11 5/8 inches deep this is the slimmest gas fireplace on the market, perfect for older buildings and condos.
With a viewable area of 26 inches tall the Cupido 70 has a large view for such a small fireplace. The Real Flame burner system has multiple settings from roaring fire to a low glow to create your own flame picture.
Click below for a PDF listing specifications, information, accessories, and, venting.
The Cupido 70 is produced by Element4 B.V., the award-winning fireplace manufacturer from the Netherlands, and is imported and distributed by European Home for installations in North America.
*Please note” Flames in this video are Natural Gas (NG). Liquid Propane (LP) flames are 30% lower.
Burner System for the Cupido 70
REAL FLAME BURNER
With the Real Flame burner, you are assured of an extremely realistic fire image. The flames, in combination with the realistic logs, create an utterly realistic wood fire look.
Element4 is the responsible fireplace company
With the multi-burner system and the eco-mode, you can enjoy your fireplace as a room heater and know that you are being as efficient as possible. Why use more gas than you need to? Why heat your whole house if you don’t have to? Area heating with great design, from a company that considers environmental issues. Some companies are okay to send the heat outside – not Element4 they are responsible when it comes to OUR environment.
Learn more.
Fire media.
Accessories.
Specifications
- Gas Type
- Natural Gas or Propane
- Burner
- Real Flame Burner
- Heat Output (Natural Gas)
- 10,000 - 35,500 BTU/hr
- Heat Output (LPG)
- 8,500 - 28,000 BTU/hr
- Viewable Opening
- 24-1/4" x 26-1/4" H
- Framing
- Please refer to the Installation Manual for more information
- Venting
- Requires 4" x 6" direct vent
- Flame Adjustment
- Yes
- Approximate Fireplace Weight
- 128 lbs.
- Standard Interior
- Anthracite
- Optional Designer Interiors
- Reflective Black or Concrete Style
- Remote Control
- Yes
- Fireplace Control Options
- Puck Wall Control, Home Automation Cable, ProControl (App Control)
- Electronic Ignition
- Yes
- Certification
- ANSI Z21.11.50a-2008, CSA 2.22a-2008, CSA P.4 - Vented Gas Fireplaces
- Mass Approval Code
- G1-0117-315
- Efficiency
- 88%
Cupido 70 Gas Fireplace installations.
