The G Series linear NG burner – dual listed, vented and vent-free.

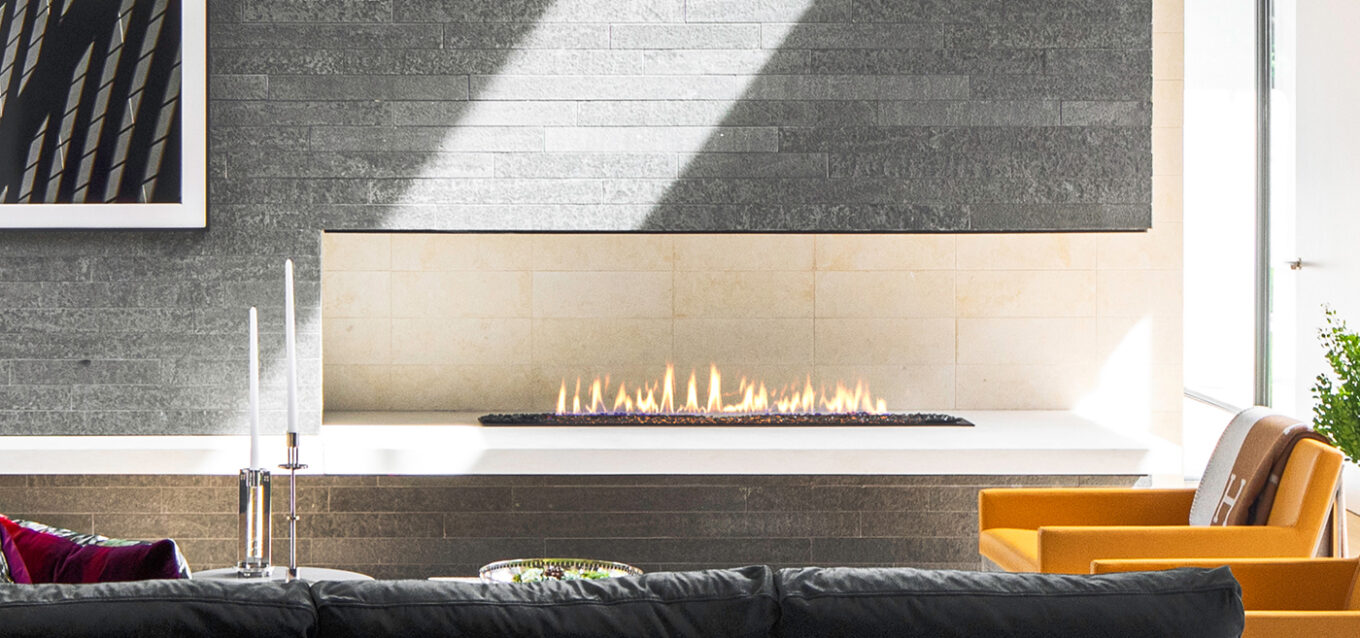

Looking for a custom design? The G Series linear gas burner provides you with a simple way to achieve the look of a custom fireplace but with the simplicity of an approved dual-listed vented and vent-free NG burner. This burner is used in an existing fireplace or in custom-built fireplaces.

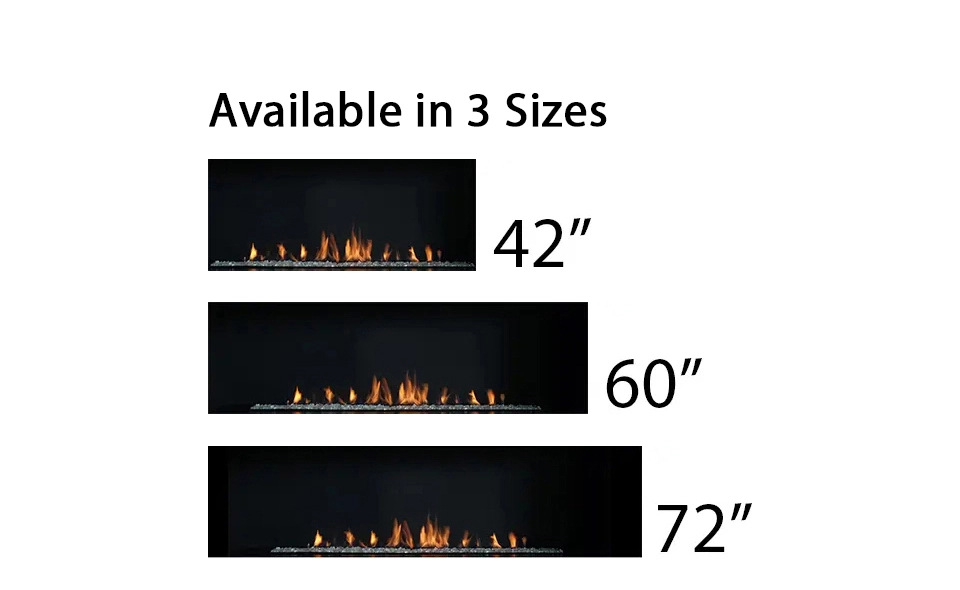

G Series burners are available in 3 sizes (42″, 60″ and 72″) as drop-in customizable units or with the optional cover (as seen in the Accessories section below). The optional cover is useful for floor-level installation as it hides away the controls and burner parts to give a clean, modern look.
Manufactured in the U.S.A.
Click below for a PDF listing specifications, information, and accessories.
The G Series linear NG burner – dual listed, vented and vent-free.
Looking for a custom design? The G Series linear gas burner provides you with a simple way to achieve the look of a custom fireplace but with the simplicity of an approved dual-listed vented and vent-free NG burner. This burner is used in an existing fireplace or in custom-built fireplaces.
G Series burners are available in 3 sizes (42″, 60″ and 72″) as drop-in customizable units or with the optional cover (as seen in the Accessories section below). The optional cover is useful for floor-level installation as it hides away the controls and burner parts to give a clean, modern look.
Manufactured in the U.S.A.
Click below for a PDF listing specifications, information, and accessories.
Manuals
Looking for past files? See our technical file archive.
CAD / BIM / Design Files
-
Cut Sheet / Planning Dimensions - GVF-42 Burner
-
Cut Sheet / Planning Dimensions - GVF-42 Burner Cover
-
Cut Sheet / Planning Dimensions - GVF-60 Burner
-
Cut Sheet / Planning Dimensions - GVF-60 Burner Cover
-
Cut Sheet / Planning Dimensions - GVF-72 Burner
-
Cut Sheet / Planning Dimensions - GVF-72 Burner Cover
-
CAD Files
Specifications
-
Gas Type
Natural Gas
-
Heat Output (Natural Gas)
N/A
-
Burner Size
39" / 60" / 72" W x 16-1/4" D x 5-3/16" H
-
Cover Size
39" / 60" / 72" W x 16-1/4" D x 5-5/16" H
-
Venting
Listed for Vented or Vent-Free Applications
-
Flame Adjustment
Yes
-
Remote Control
Yes
-
Electronic Ignition
Yes
-
Certification
ANSI Z21.11.2 / ANSI Z.21.60 / CSA 2.26
-
MA Approval Code
G3-0219-4
-
Efficiency - Vented
85%
-
Efficiency - Vent-Free
99%

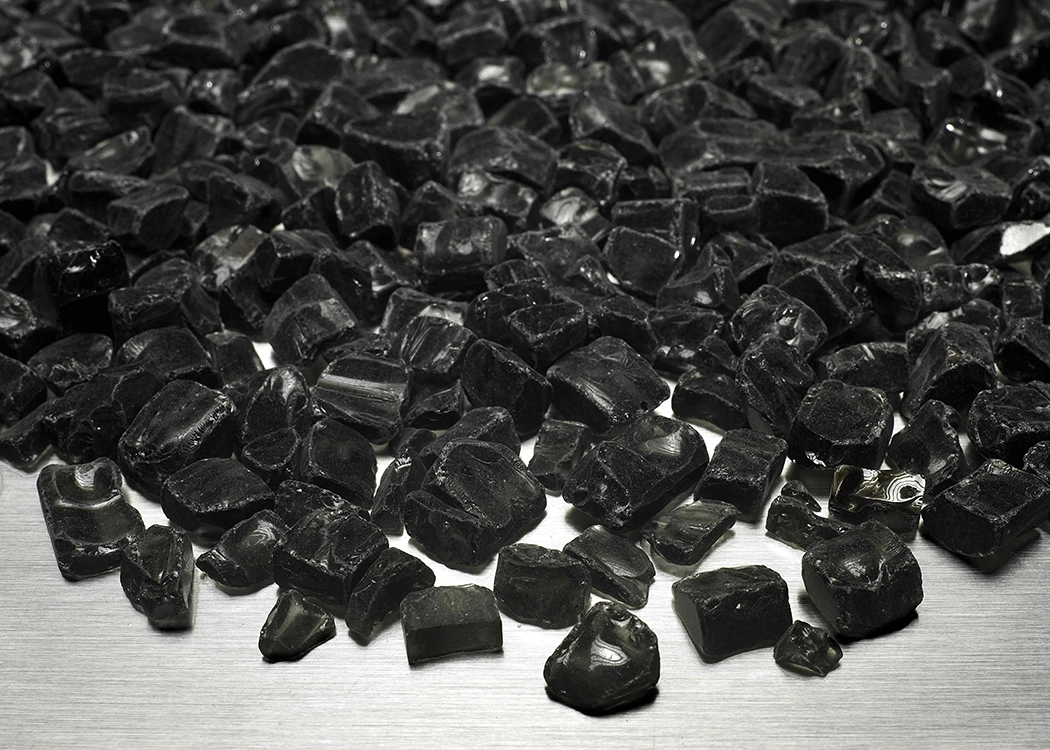

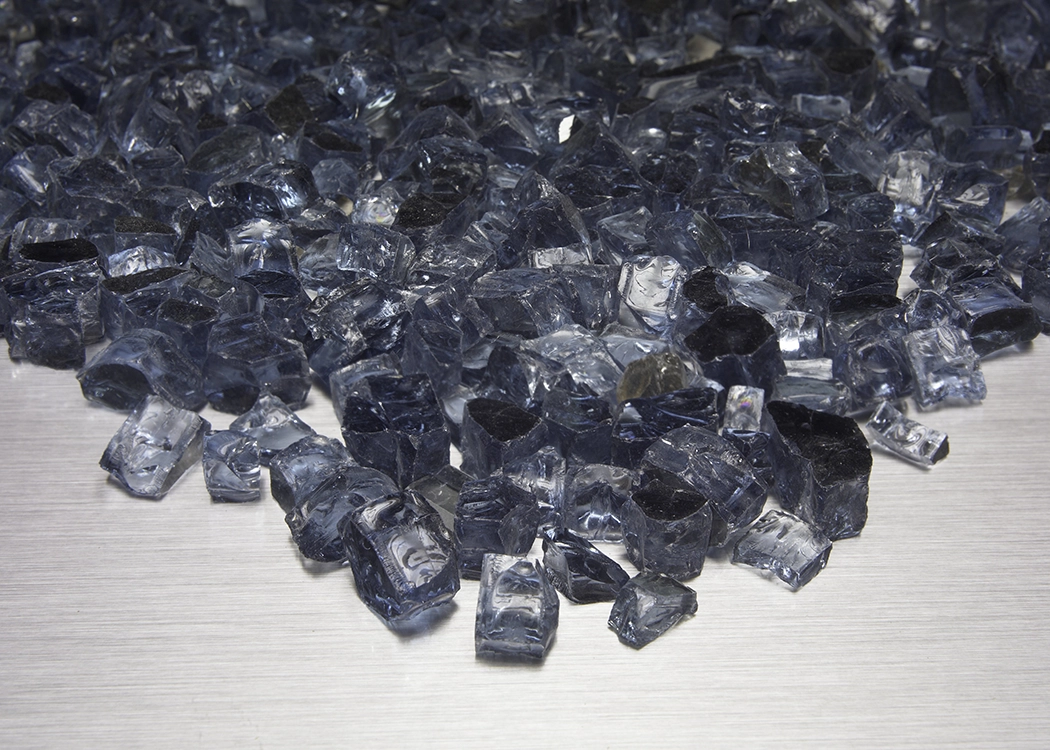

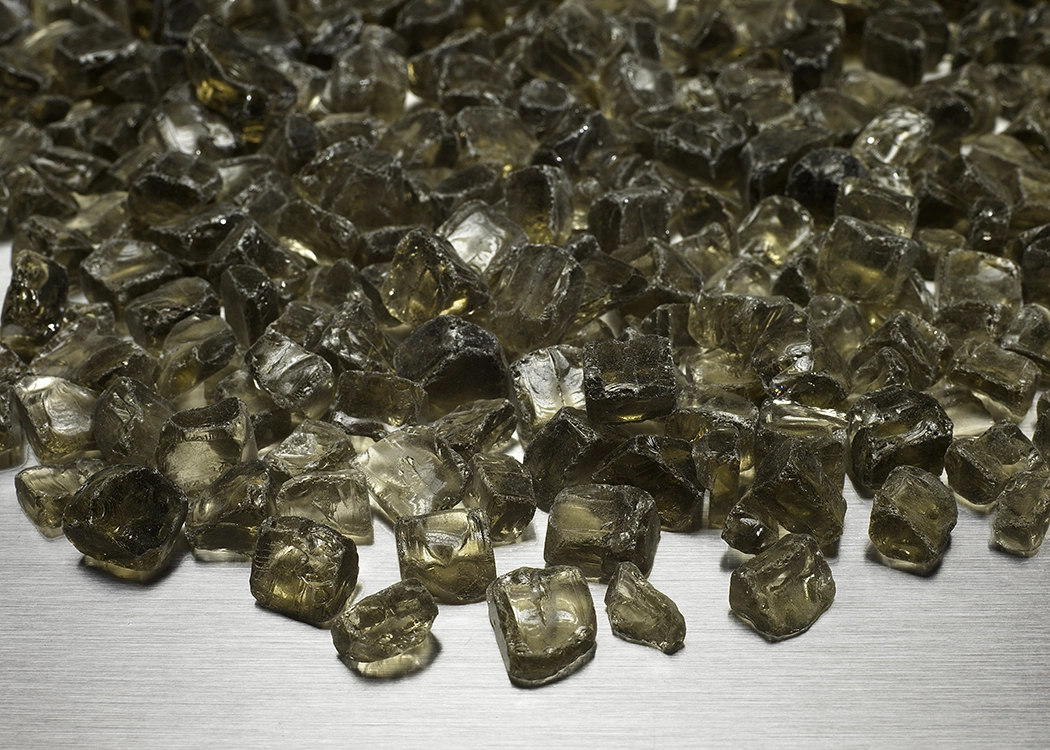

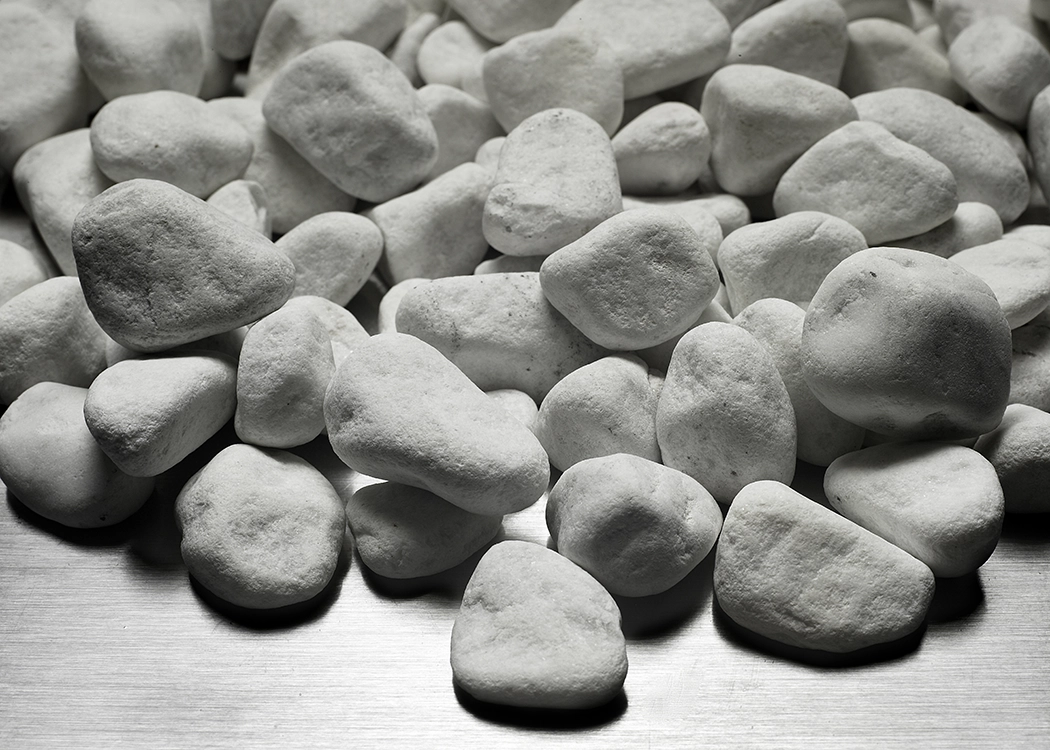

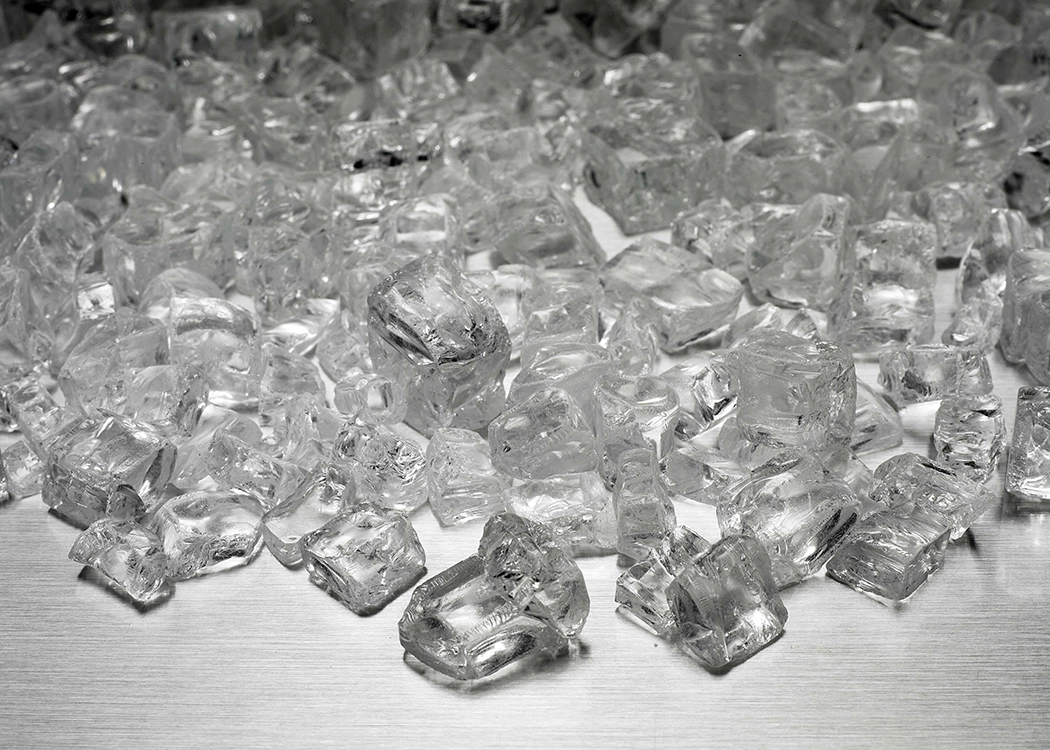

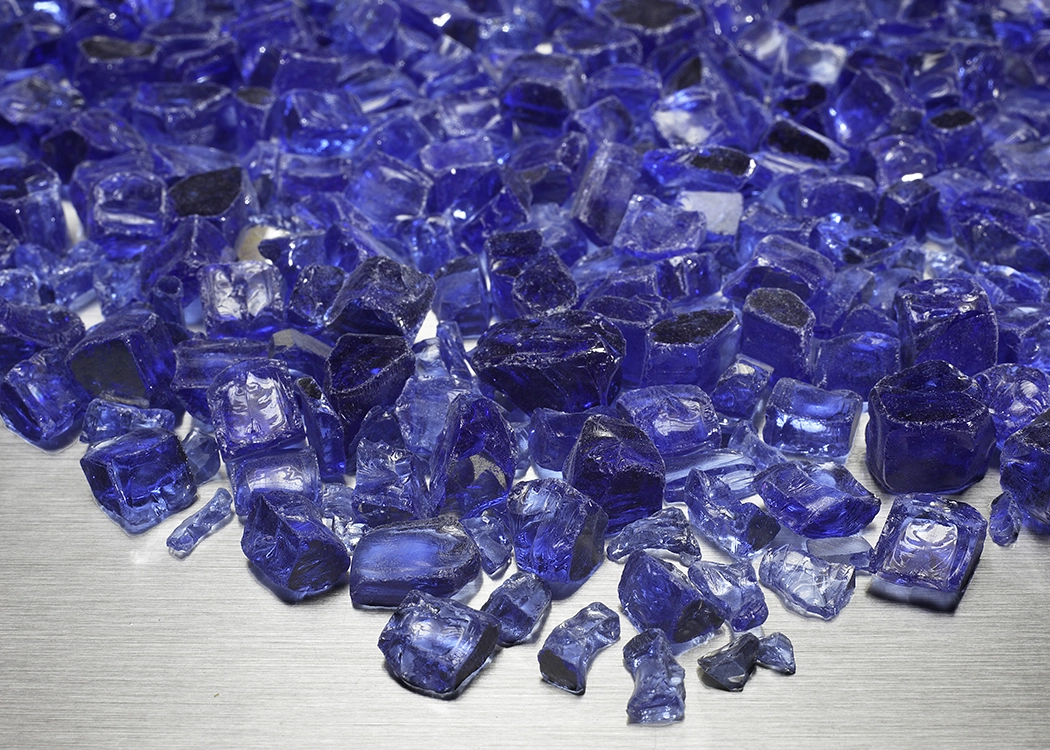

Fire Media
Awards
Gallery
